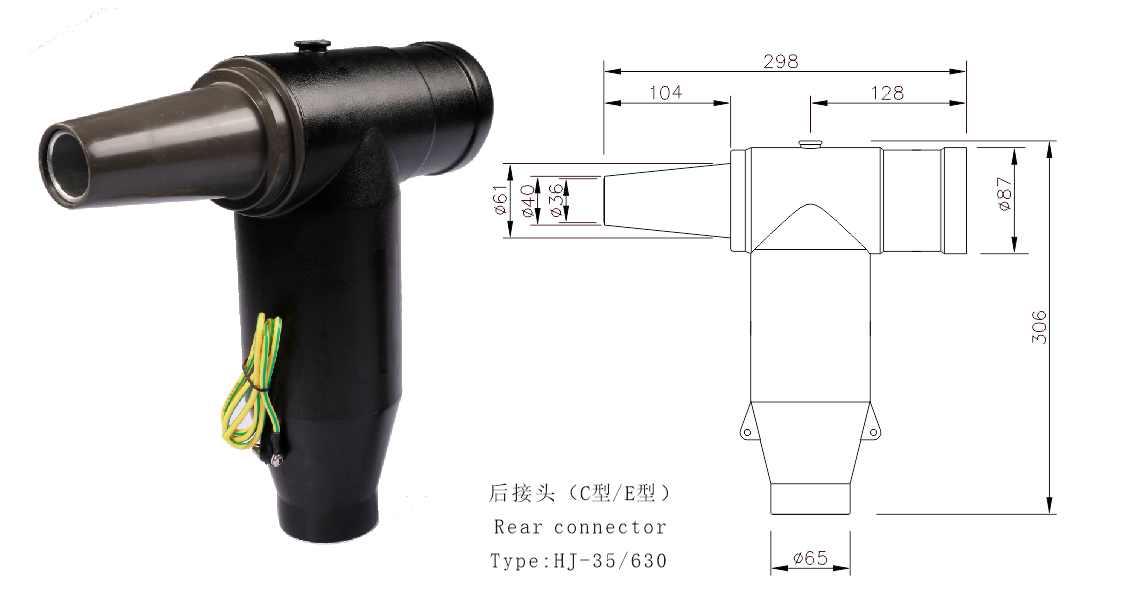

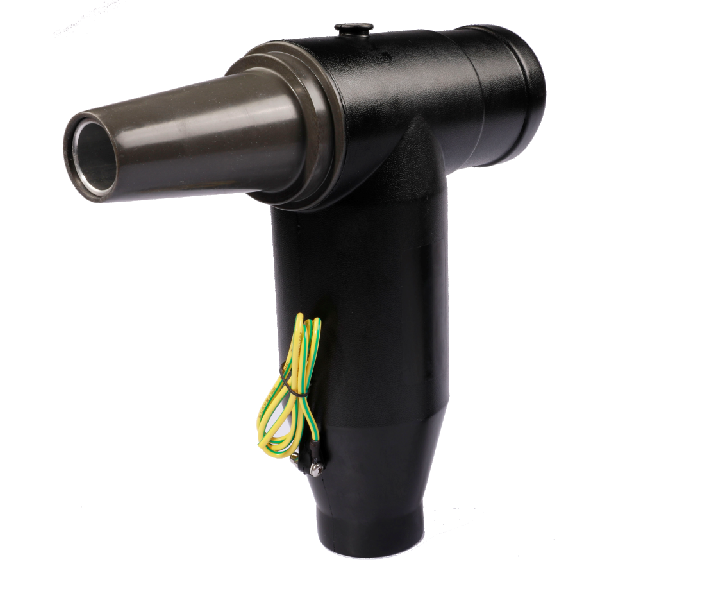

35kV-630A欧式电缆后接头
35kV 630A Rear connector
-
HJ-35/630
产品应用：

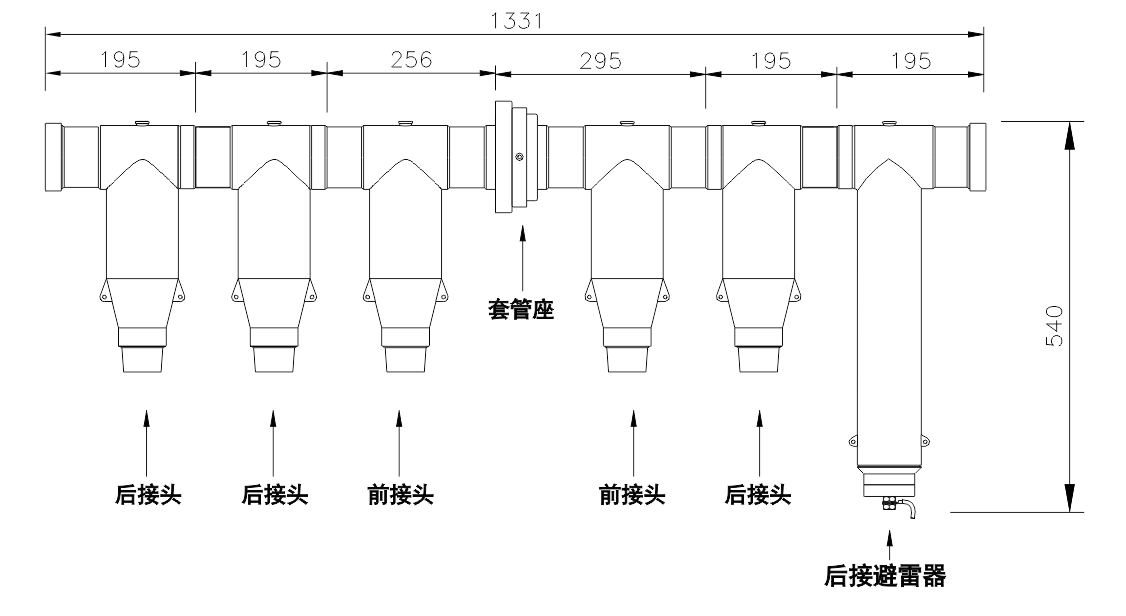

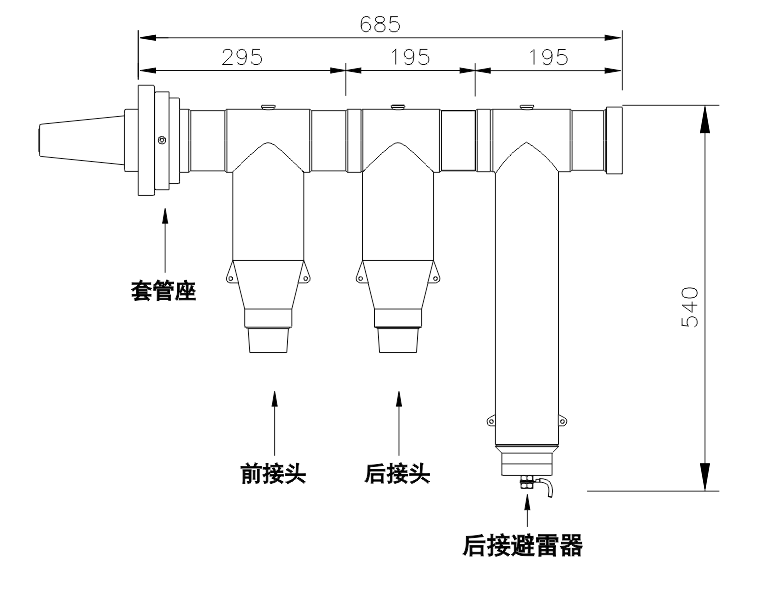

35kV 630A 屏蔽型电缆后接头连接于前接头后面，后接头后面还可以安装后接头或后接避雷器实现多回路进出线配置。适用于工频交流电压为35kV及以下电厂、变电站的配电装置和高压电气中。产品采用国际先进的后注射绝缘层工艺，电气性能达到国际领先水平，使用更安全、更可靠。安装条件不受恶劣环境影响，防凝露、防污秽、免维护。产品应力处理引进国际先进技术，产品结构尺寸小，充分满足了安装空间的要求，是国际领先的预制式电缆头。适用电缆截面50-500mm。
35kv 630A Rear connector connected to the front connector behind, after the back of the connector can also be installed after the rear or rear arrester to achieve multi-loop access line configuration. applicable to the frequency AC voltage of 35kV and below power plants, substation power distribution devices and high voltage electrical. Products using the international advanced post-injection insulation technology, electrical performance to the international advanced level, the use of more secure, more reliable. Installation conditions are not affected by harsh environments, anti-condensation, anti-pollution, maintenance-free. product stress handling the introduction of german technology, product structure size is small, fully meet the requirements of the installation space, is the world's leading prefabricated cable head. applicable cable cross section 50-500
产品包装：
后接头本体
应力锥,压接端子
连接杆,双头螺栓
半导电带
铜接地线、硅脂、清洁纸
安装标尺卡、安装指导说明书
产品出厂资料
Rear connector body
Stress cone,Crimping terminal
Connecting rod
Semiconductive belt
Copper grounding wire, silicon grease, cleaning paper
Install scale card, installation instruction manual
Product information
