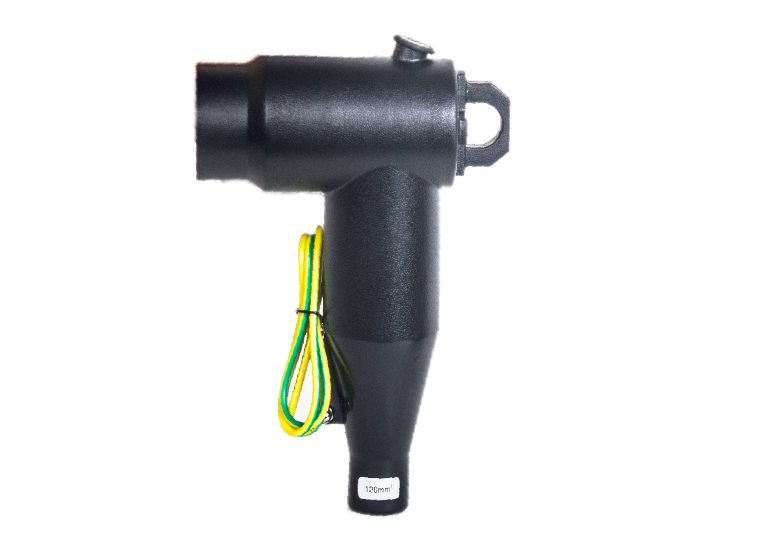

10kV-250A肘型电缆接头
15kV 250A Elbow connector
-
ZT-15/250
产品应用：
10kV 250A 肘型电缆接头为全绝缘、全密封的插入式终端电缆接头，广泛应用于户外配美式箱变，环网柜，地埋式变压器及其它电气设备的连接。产品采用高品质的绝缘橡胶,适用电缆截面25-120mm。
10kV 250A Elbow connector is fully insulated, fully sealed plug-in terminal cable connector, widely used in outdoor with american box change, ring network cabinet, buried transformer and other electrical equipment connection. the product adopts high quality insulation rubber, suitable for cable section 25-120mm。

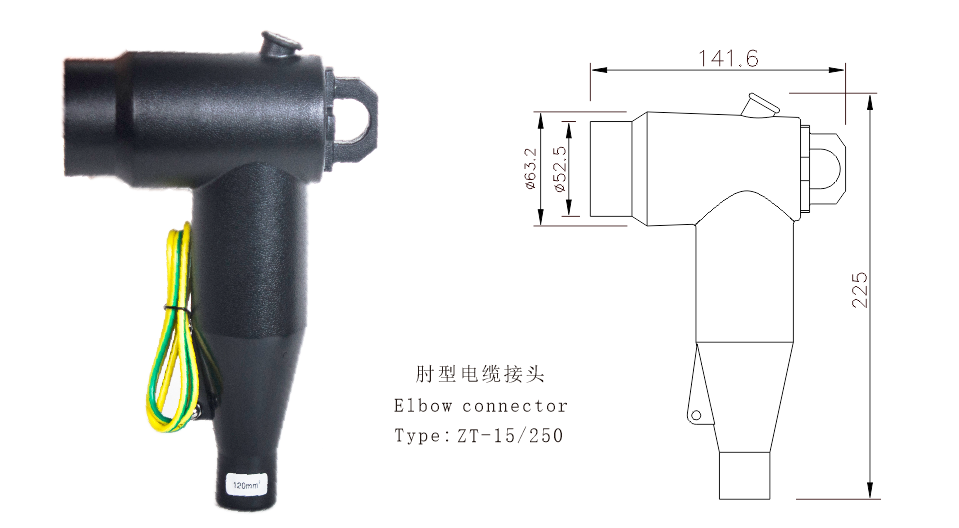

产品结构：
绝缘层：特有的配方和混合技术确保预制绝缘橡胶的优质品质。
内半导电层：预制的高品质导电橡胶有效的控制电场应力。
接地孔：预注到外屏蔽中用于接地线的连接。
外半导电层：预制的高品质导电橡胶与电缆屏蔽层搭接使屏蔽连续，并确保外半导电层处于接地状态。
Insulation layer: unique formula and hybrid technology ensure the high quality of prefabrication insulating rubber.
Inner semi-conductive layer: prefabricated high quality conductive rubber effective control electric field stress.
Earthing eye: pre-injection to the outer screen used for earthing wire connection
Outer semi-conductive layer: Prefabricated high-quality conductive rubber overlap with the cable screen layer,make thescreen continuous, and make sure the outer semi-conductive layer in the earthing status.
产品包装：
Stainless steel fixing plate + screw + nut
Copper grounding wire, silicon grease, cleaning paper
Install scale card, installation instruction manual
Installation tools and products
10kV 250A 肘型电缆接头为全绝缘、全密封的插入式终端电缆接头，广泛应用于户外配美式箱变，环网柜，地埋式变压器及其它电气设备的连接。产品采用高品质的绝缘橡胶,适用电缆截面25-120mm。
10kV 250A Elbow connector is fully insulated, fully sealed plug-in terminal cable connector, widely used in outdoor with american box change, ring network cabinet, buried transformer and other electrical equipment connection. the product adopts high quality insulation rubber, suitable for cable section 25-120mm。
产品结构：
绝缘层：特有的配方和混合技术确保预制绝缘橡胶的优质品质。
内半导电层：预制的高品质导电橡胶有效的控制电场应力。
接地孔：预注到外屏蔽中用于接地线的连接。
外半导电层：预制的高品质导电橡胶与电缆屏蔽层搭接使屏蔽连续，并确保外半导电层处于接地状态。
Insulation layer: unique formula and hybrid technology ensure the high quality of prefabrication insulating rubber.
Inner semi-conductive layer: prefabricated high quality conductive rubber effective control electric field stress.
Earthing eye: pre-injection to the outer screen used for earthing wire connection
Outer semi-conductive layer: Prefabricated high-quality conductive rubber overlap with the cable screen layer,make thescreen continuous, and make sure the outer semi-conductive layer in the earthing status.
产品包装：
肘型接头本体、压接端子
不锈钢固定压板+螺杆+螺母
铜接地线、硅脂、清洁纸
安装标尺卡、安装指导说明书
安装工具、产品出厂资料
Stainless steel fixing plate + screw + nut
Copper grounding wire, silicon grease, cleaning paper
Install scale card, installation instruction manual
Installation tools and products
