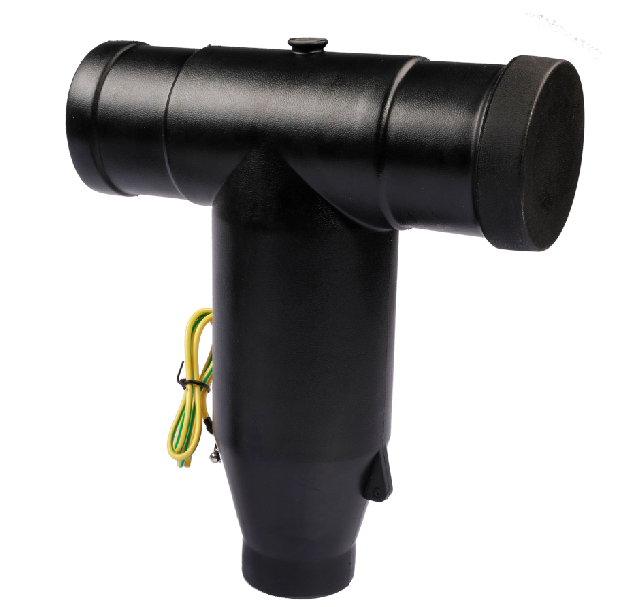

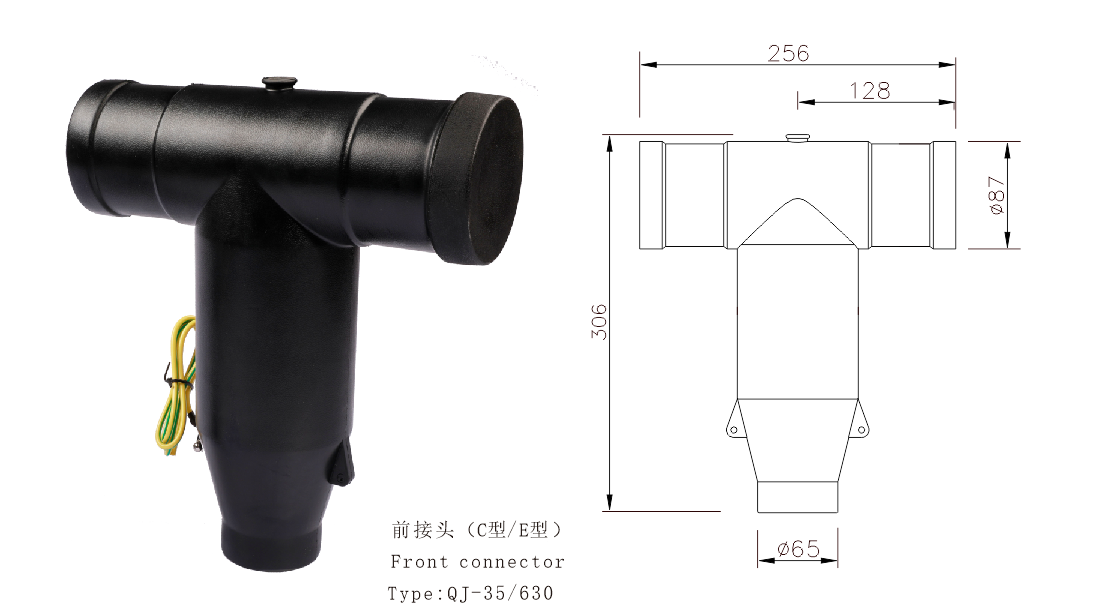

35kV-630A欧式电缆前接头
35kV 630A Front connector
-
QJ-35/630
产品应用：
section50-500.
抗凝露和防污染，免维护,应力锥解决局部放电
小尺寸的设计满足安装空间的要求
It is suitable for the input、output line of high voltage electrical equipment, power conversion station or 35kV,
such as cable branch box, combined transformer system
Anti condensation and anti pollution, maintenance free,Partial discharge of stress cone
Small size design to meet the requirements of the installation spac
黑色防尘帽（非绝缘保护帽）
应力锥
压接端子
绝缘堵头
半导电带
双头螺栓及平垫、弹垫、螺帽
铜接地线、硅脂、清洁纸
安装标尺卡、安装工具、安装指导说明书
产品出厂资料
Front connector body
Black dust cap (non insulated protective cap)
Cable adaptor
Crimp terminal
Insulation plug
Semiconductive belt
Double head bolt and flat pad, elastic pad, nut
Copper grounding wire, silicon grease, cleaning paper
Install scale card, installation tools, installation instructions
Product information
35kV 630A 屏蔽型电缆前接头,适用于工频交流电压为35kV及以下电厂、变电站的配电装置和高压电气中，如：电缆分接箱、
合式变压器、充气柜、风能变电站的进出线。与套管座、对接套管、单边套管相连接实现全绝缘、全密封、全屏蔽。产品采用国际先进的后注射绝缘层工艺，电气性能达到国际领先水平，使用更安全、更可靠。安装条件不受恶劣环境影响，防凝露、防污秽、免维护。产品应力处理引进国际先进技术，产品结构尺寸小，充分满足了安装空间的要求，是国际领先的预制式电缆头。适用电缆截面50-500mm。
section50-500.
产品特点
抗凝露和防污染，免维护,应力锥解决局部放电
小尺寸的设计满足安装空间的要求
It is suitable for the input、output line of high voltage electrical equipment, power conversion station or 35kV,
such as cable branch box, combined transformer system
Anti condensation and anti pollution, maintenance free,Partial discharge of stress cone
Small size design to meet the requirements of the installation spac
产品包装：
黑色防尘帽（非绝缘保护帽）
应力锥
压接端子
绝缘堵头
半导电带
双头螺栓及平垫、弹垫、螺帽
铜接地线、硅脂、清洁纸
安装标尺卡、安装工具、安装指导说明书
产品出厂资料
Front connector body
Black dust cap (non insulated protective cap)
Cable adaptor
Crimp terminal
Insulation plug
Semiconductive belt
Double head bolt and flat pad, elastic pad, nut
Copper grounding wire, silicon grease, cleaning paper
Install scale card, installation tools, installation instructions
Product information
