10kV-630A欧式电缆后接头

产品运用：

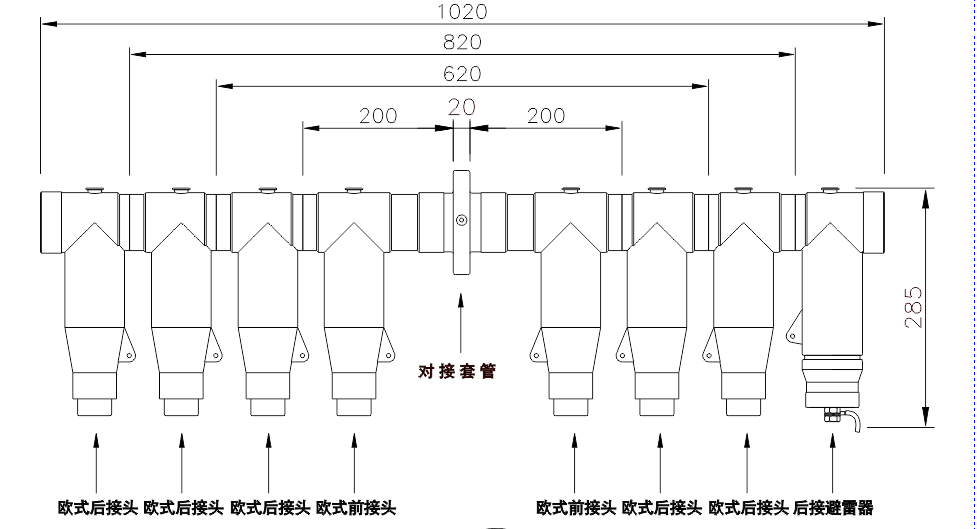

    10kV欧式后接头，应用于10kV电缆分接箱、环网柜、充气柜及高压开关柜,安装在前接头后面实现多回路出线电缆连接及密封,为全绝缘、全密封、全屏蔽产品。
    产品采用国际先进的后注射绝缘层工艺，电气性能达到国际领先水平，使用更安全、更可靠。安装条件不受恶劣环境影响，防凝露、防污秽、免维护。产品应力处理引进国际先进技术，产品结构尺寸小，充分满足了安装空间的要求，是国际领先的预制式电缆头。适用电缆截面25-630mm。
    10kV Rear connector, applied to the 1okV cable distribution box, ring network cabinet, charging cabinet and high voltage switch cabinet, installation of multi loop outlet cable connection and sealing in the joint back to all the insulation, seal, shielding products。
    Products using the international advanced post-injection insulation technology, electrical performance to the international advanced level, the use of more secure, more reliable. installation conditions are not affected by harsh environments, anti-condensation, anti-pollution, maintenance-free.product stress handling the introduction of german technology, product structure size is small, fully meet the requirements of the installation space, is the world's leading prefabricated cable head. applicable cable cross section 25-630mm。
产品包装：
后接头本体
应力锥,压接端子
连接杆,双头螺栓
半导电带
铜接地线、硅脂、清洁纸
安装标尺卡、安装指导说明书
产品出厂资料
Rear connector body
Stress cone,Crimping terminal
Connecting rod
Semiconductive belt
Copper grounding wire, silicon grease, cleaning paper
Install scale card, installation instruction manual
Product information
