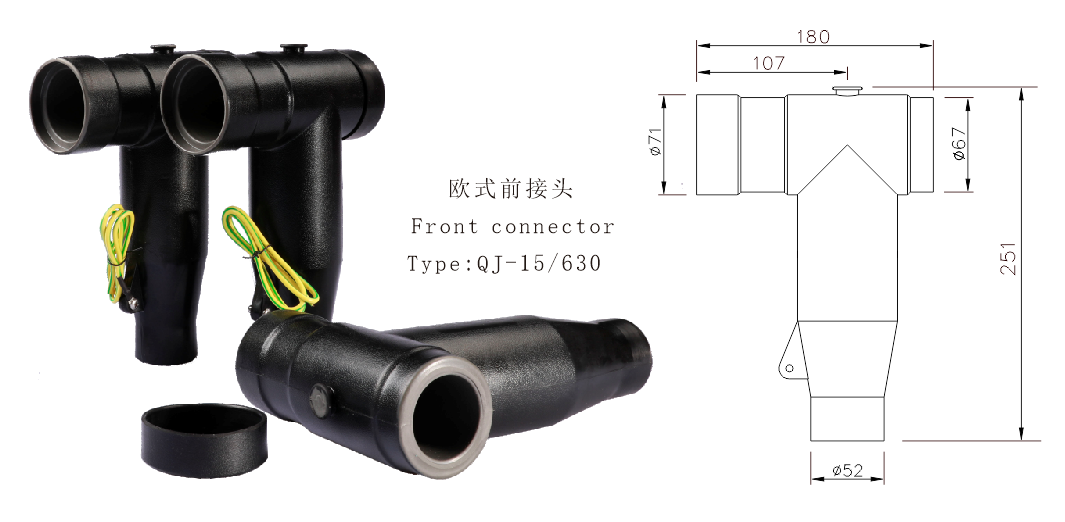

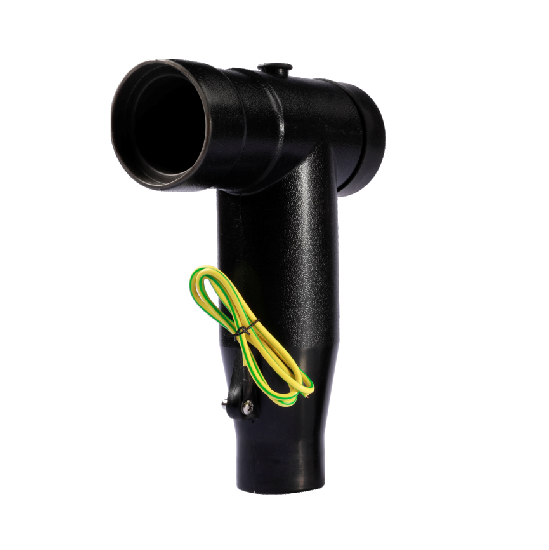

10kV-630A欧式电缆前接头

产品运用：
    10kV欧式前接头，应用于10kV电缆分接箱、环网柜、充气柜及高压开关柜,直接安装在设备套管上,作为进出线电缆连接及密封,为全绝缘、全密封、全屏蔽产品。
    产品采用国际先进的后注射绝缘层工艺，电气性能达到国际领先水平，使用更安全、更可靠。安装条件不受恶劣环境影响，防凝露、防污秽、免维护。产品应力处理引进国际先进技术，产品结构尺寸小，充分满足了安装空间的要求，是国际领先的预制式电缆头。适用电缆截面25-630mm
10kV Front connector,used in 10kV cable distribution box, ring cabinet, inflatable cabinet and high voltage switchgear, installed directly on the equipment casing, as the inlet and outlet cable connection and sealing, for the whole insulation, sealed, fully shielded products。
     Products using the international advanced post-injection insulation technology, electrical performance to the international advanced level, the use of more secure, more reliable. installation conditions are not affected by harsh environments, anti-condensation, anti-pollution, maintenance-free. product stress handling the introduction of german technology, product structure size is small, fully meet the requirements of the installation space, is the world's leading prefabricated cable head. applicable cable cross section 25-630mm。
适合电缆：
聚合物绝缘（XLPE、ERP等）
Polymer insulation (XLPE, ERP)
铜或铝导体
Copper or aluminium conductor(YJY or YJLV)
具有半导电或金属屏蔽
Semiconducting or metallic screens
导体尺寸：25-630mm
The conductor size: 25-630mm
标准包装：

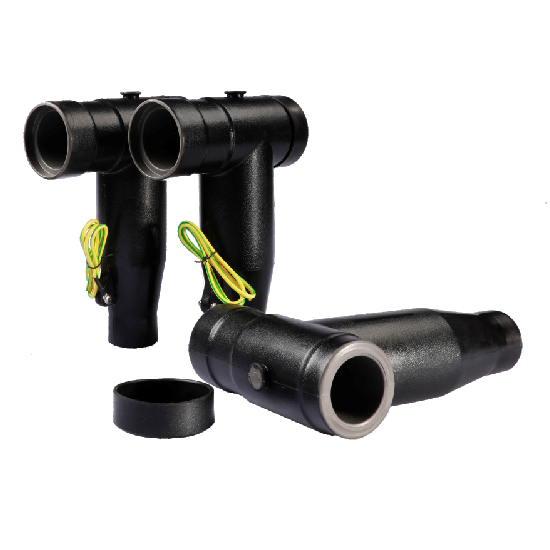

前接头本体
Front connector body
黑色防尘帽（非绝缘保护帽）
Black dust cap (non insulated protective cap)
应力锥
Cable adaptor
压接端子
Crimp terminal
绝缘堵头
Insulation plug
半导电带
Semiconductive belt
双头螺栓及平垫、弹垫、螺帽
Double head bolt and flat pad, elastic pad, nut
铜接地线、硅脂、清洁纸
Copper grounding wire, silicon grease, cleaning paper
安装标尺卡、安装工具、安装指导说明书
Install scale card, installation tools, installation instructions
产品出厂资料
Product information
产品结构：
双头螺栓：不锈钢螺栓确保导体和套管紧密配合
Bolt: stainless steel bolts ensure conductor and bushing match closely
绝缘层：特有的配方和混炼技术确保预制绝缘橡胶的优良品质
Insulation layer: unique formula and hybrid technology ensure the high quality of prefabrication insulating rubber
绝缘子：环氧树脂绝缘子内含有带螺纹金属件可以确保与双头螺栓紧密配合
Insulator: epoxy resin insulators containing threaded metal parts to ensure close coordination with the double headed bolt
内半导电层：预制的高品质导电橡胶有效的控制电场应力
Inner semi-conductive layer: prefabricated high quality conductive rubber effective control electric field stress
应力锥：不同尺寸的应力锥配合电缆使用，能确保密封以及电缆应力释放
Cable adaptor:different size of cable adaptor work with cable, can ensure the sealing and cable stress release
外半导电层：预制的高品质导电橡胶与电缆屏蔽层搭接使屏蔽连续，并确保外半导电层处于接地状态
Outer semi-conductive layer: Prefabricated high quality conductive rubber and cable shield overlap to make the shield continuous and ensure that the outer semiconducting layer is in a grounded state
