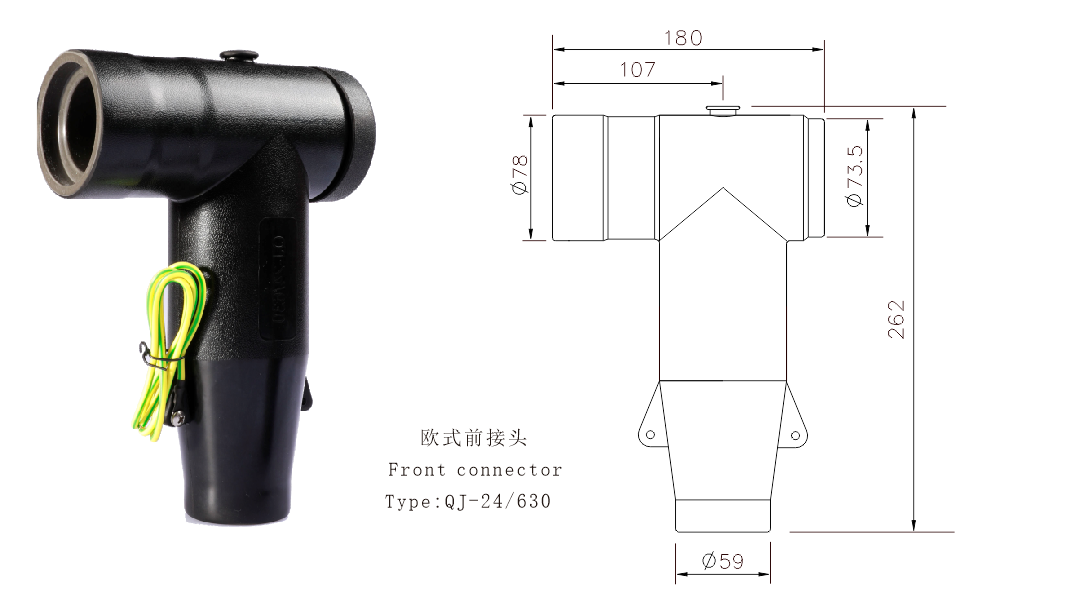

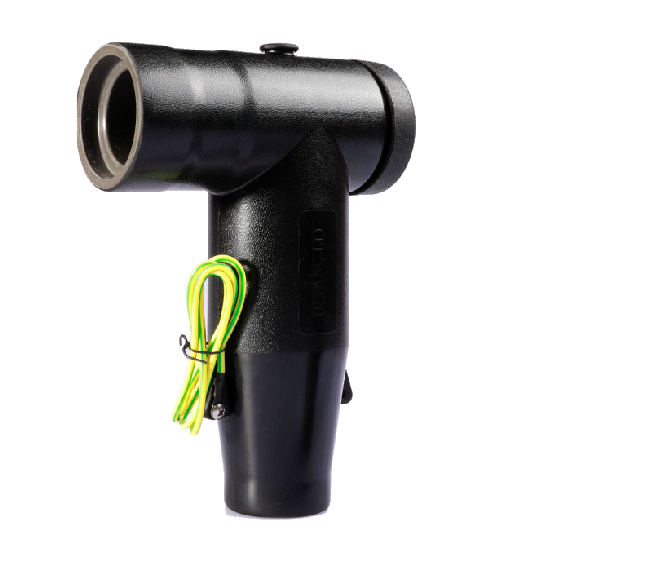

24kV-630A欧式电缆前接头
24kV 630A Front connector
-
QJ-24/630
产品应用：
24kV欧式前接头，应用于24kV电缆分接箱、环网柜、充气柜及高压开关柜,直接安装在设备套管上,作为进出线电缆连接及密封,为全绝缘、全密封、全屏蔽产品。
产品采用国际先进的后注射绝缘层工艺，电气性能达到国际领先水平，使用更安全、更可靠。安装条件不受恶劣环境影响，防凝露、防污秽、免维护。产品应力处理引进国际先进技术，产品结构尺寸小，充分满足了安装空间的要求，是国际领先的预制式电缆头。适用电缆截面35-500mm。
24kV Front connector,used in 24kV cable distribution box, ring cabinet, inflatable cabinet and high voltage switchgear, installed directly on the equipment casing, as the inlet and outlet cable connection and sealing, for the whole insulation, sealed, fully shielded products。
The product adopts the international advanced injection insulation technology, the electrical performance of the international leading level, the use of more secure, more reliable. installation conditions are not affected by the adverse environment, anti condensation, anti pollution, maintenance free. the introduction of the product stress treatment technology in germany, small size of the product structure, fully meet the requirements of the installation space, is the world's leading prefabricated cable head. applicable cable section 35-500mm。
产品结构：
双头螺栓：不锈钢螺栓确保导体和套管紧密配合
绝缘层：特有的配方和混炼技术确保预制绝缘橡胶的优良品质
绝缘子：环氧树脂绝缘子内含有带螺纹金属件可以确保与双头螺栓紧密配合
内半导电层：预制的高品质导电橡胶有效的控制电场应力
应力锥：不同尺寸的应力锥配合电缆使用，能确保密封以及电缆应力释放
外半导电层：预制的高品质导电橡胶与电缆屏蔽层搭接使屏蔽连续，并确保外半导电层处于接地状态
Bolt: stainless steel bolts ensure conductor and bushing match closely
Insulation layer: unique formula and hybrid technology ensure the high quality of prefabrication
insulating rubber.
Insulator: epoxy resin insulators containing threaded metal parts to ensure close coordination with the
double headed bolt
Inner semi-conductive layer: prefabricated high quality conductive rubber effective control electric field stress.
Cable adaptor:different size of cable adaptor work with cable, can ensure the sealing and cable stress release
Outer semi-conductive layer: Prefabricated high-quality conductive rubber overlap with the cable screen
layer,make the screen continuous, and make sure the outer semi-conductive layer in the earthing status.
适合电缆：
聚合物绝缘（XLPE、ERP等）
铜或铝导体
具有半导电或金属屏蔽
导体尺寸：25-500mm
Polymer insulation (XLPE, ERP,etc)
Copper or aluminium conductor(YJY or YJLV)
Semiconducting or metallic screens
The conductor size: 25-500mm
产品包装：
前接头本体
黑色防尘帽（非绝缘保护帽）
应力锥
压接端子
绝缘堵头
半导电带
双头螺栓及平垫、弹垫、螺帽
铜接地线、硅脂、清洁纸
安装标尺卡、安装工具、安装指导说明书
产品出厂资料
Front connector body
Black dust cap (non insulated protective cap)
Cable adaptor
Crimp terminal
Insulation plug
Semiconductive belt
Double head bolt and flat pad, elastic pad, nut
Copper grounding wire, silicon grease, cleaning paper
Install scale card, installation tools, installation instructions
Product information
