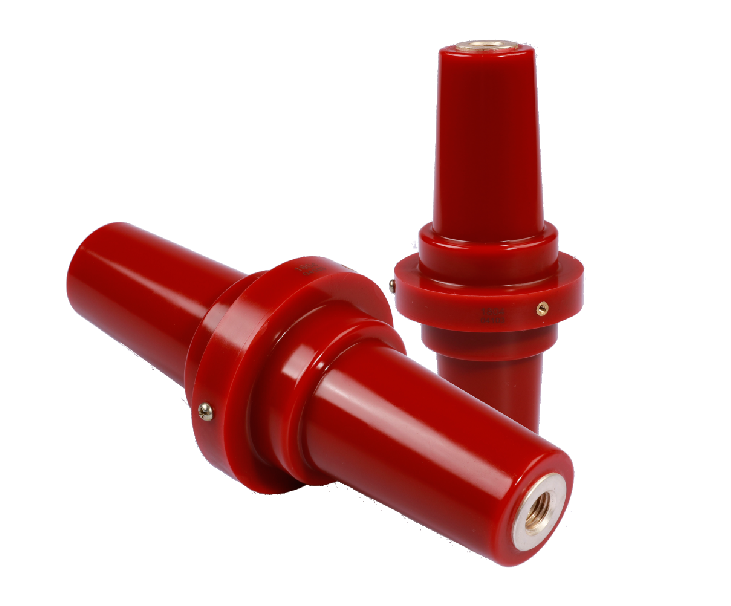

35kV 630A-1250A 对接套管(C)型
35kV wo-side bushing
-
DJG-35/630-C DJG-35/1250-C
产品应用：
35kV 630A-1250A对接套管主要使用于35kV高压分接箱进出线与电缆接头连接，实现进出线全绝缘、全密封、全屏蔽。产品采用进口环氧树脂，APG注射工艺成型,具有优异的电气性能和机械性能。使用更安全、更可靠。安装条件不受恶劣环境影响，防凝露、防污秽、免维护，产品内置屏蔽网，自带传感器功能可与电感型带电指示器相连，显示母线带电状态。
35kv 630A-1250A Two-side bushing mainly used in 35kV high voltage distribution box inlet and outlet and cable connector connection, to achieve full access to the outlet, fully sealed, full shield. products using imported epoxy resin, APG injection molding process, with excellent electrical and mechanical properties. use safer and more reliable. Installation conditions are not affected by harsh environments, anti-condensation, anti-pollution, maintenance-free, built-in shielding network products, built-in sensor function can be connected with the inductive charge indicator, display bus live state。
35kV 630A-1250A对接套管主要使用于35kV高压分接箱进出线与电缆接头连接，实现进出线全绝缘、全密封、全屏蔽。产品采用进口环氧树脂，APG注射工艺成型,具有优异的电气性能和机械性能。使用更安全、更可靠。安装条件不受恶劣环境影响，防凝露、防污秽、免维护，产品内置屏蔽网，自带传感器功能可与电感型带电指示器相连，显示母线带电状态。
35kv 630A-1250A Two-side bushing mainly used in 35kV high voltage distribution box inlet and outlet and cable connector connection, to achieve full access to the outlet, fully sealed, full shield. products using imported epoxy resin, APG injection molding process, with excellent electrical and mechanical properties. use safer and more reliable. Installation conditions are not affected by harsh environments, anti-condensation, anti-pollution, maintenance-free, built-in shielding network products, built-in sensor function can be connected with the inductive charge indicator, display bus live state。
