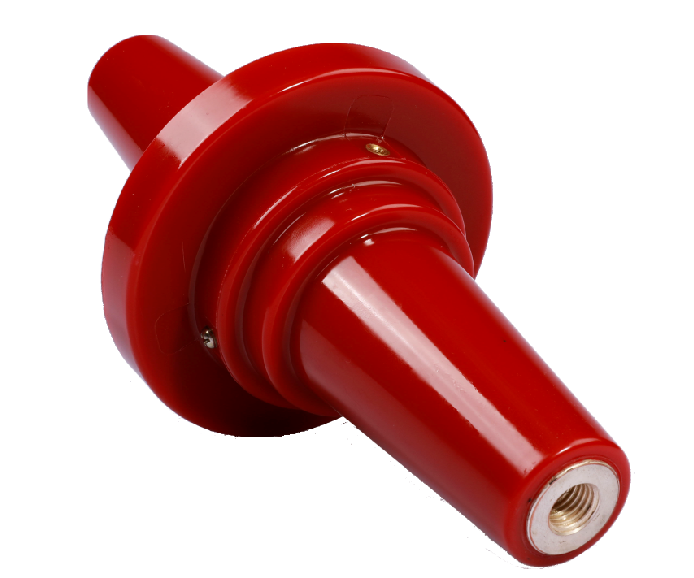

35kV 630A-1250A 套管座
35kV Bushing
-
TGZ-35/630 TGZ-35/1250
产品应用：
35kV 630A-1250A套管座主要使用于35kV箱式变电站、风能变电站、充气柜等高压进出线与屏蔽型电缆接头连接，实现进出线全绝缘、全密封、全屏蔽。产品采用进口环氧树脂，APG注射工艺成型,具有优异的电气性能和机械性能。使用更安全、更可靠。安装条件不受恶劣环境影响，防凝露、防污秽、免维护，产品内置屏蔽网，自带传感器功能可与电感型带电指示器相连，显示母线带电状态。
35kv 630A-1250A Bushing 35kv box-type substation, wind energy is mainly used in substation, aeration tank outlet and inlet line of high pressure and shielding cable joint connection, outlet and inlet line of implementing full insulation, fully sealed, full screen. products using imported epoxy resin, APG injection molding technology, excellent electrical performance and mechanical performance. use safer, more reliable. installation conditions are not affected by the bad environment, prevent condensation, filth, free maintenance, product built-in shielding net, bring their own sensors can be connected to the charged indicator function, display busbar charged state.
35kV 630A-1250A套管座主要使用于35kV箱式变电站、风能变电站、充气柜等高压进出线与屏蔽型电缆接头连接，实现进出线全绝缘、全密封、全屏蔽。产品采用进口环氧树脂，APG注射工艺成型,具有优异的电气性能和机械性能。使用更安全、更可靠。安装条件不受恶劣环境影响，防凝露、防污秽、免维护，产品内置屏蔽网，自带传感器功能可与电感型带电指示器相连，显示母线带电状态。
35kv 630A-1250A Bushing 35kv box-type substation, wind energy is mainly used in substation, aeration tank outlet and inlet line of high pressure and shielding cable joint connection, outlet and inlet line of implementing full insulation, fully sealed, full screen. products using imported epoxy resin, APG injection molding technology, excellent electrical performance and mechanical performance. use safer, more reliable. installation conditions are not affected by the bad environment, prevent condensation, filth, free maintenance, product built-in shielding net, bring their own sensors can be connected to the charged indicator function, display busbar charged state.
