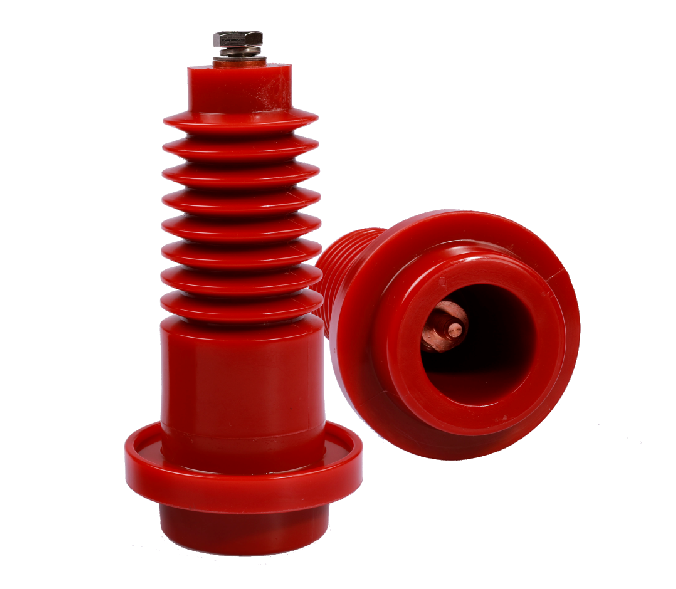

10kV-24kV 200A加长套管座
10kV-24kV 200A Extended bushing
-
TGZ-15/200 TGZ-24/200
产品应用：
10kV-24kV 200A加长套管座为200A双通套管提供连接接口，主要用于户外开关柜等设备上做200A进出线套管。与之相连接的常用电缆附件有：单通套管接头、双通套管接头等。其材料为优质环氧树脂，具有良好的机械和电气性能。独特的伞裙结构增加了爬电距离，有效提高设备的电气性能。
10kV-24kV 200A Extended bushing 200A cable connector for the connection interface, mainly used for outdoor switchgear and other equipment on the 200A line in and out of the casing. the commonly used cable accessories are: single through casing joint, double through joint, etc. the material is high quality epoxy resin with good mechanical and electrical properties. the unique structure of the umbrella skirt increases the creepage distance and effectively improves the electrical performance of the equipment。
10kV-24kV 200A加长套管座为200A双通套管提供连接接口，主要用于户外开关柜等设备上做200A进出线套管。与之相连接的常用电缆附件有：单通套管接头、双通套管接头等。其材料为优质环氧树脂，具有良好的机械和电气性能。独特的伞裙结构增加了爬电距离，有效提高设备的电气性能。
10kV-24kV 200A Extended bushing 200A cable connector for the connection interface, mainly used for outdoor switchgear and other equipment on the 200A line in and out of the casing. the commonly used cable accessories are: single through casing joint, double through joint, etc. the material is high quality epoxy resin with good mechanical and electrical properties. the unique structure of the umbrella skirt increases the creepage distance and effectively improves the electrical performance of the equipment。
