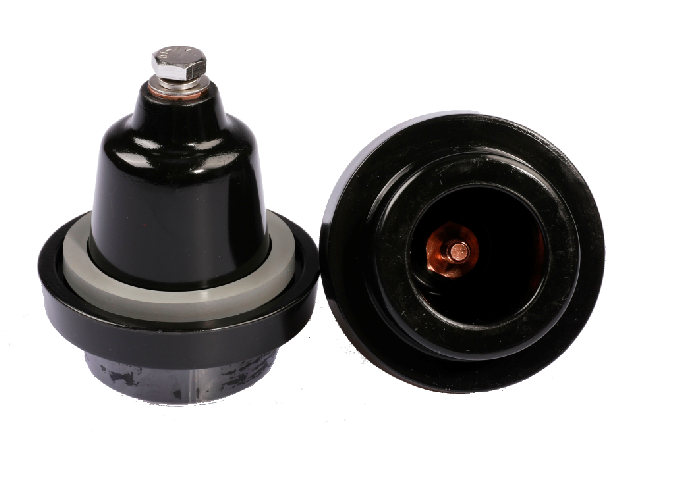

10kV-24kV 200A 套管座
10kV-24kV 200A Bushing
-
TGZ-15/200 TGZ-24/200
产品应用：

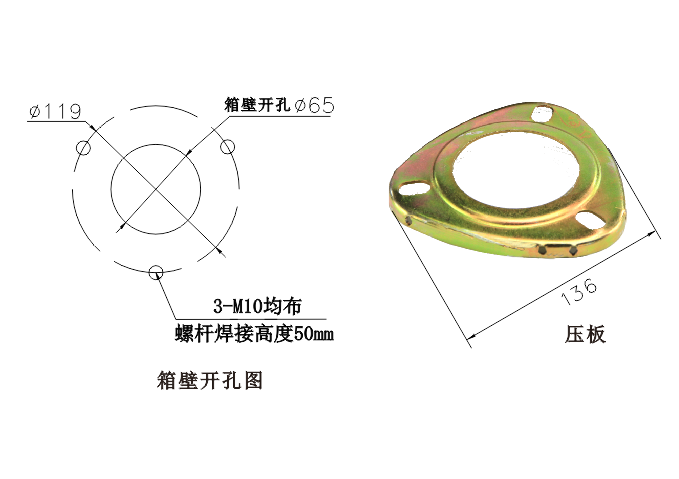

10kV-24kV 200A 套管座用于美式箱变高压引入或引出线套管接头，产品用压板将其固定于箱体上，座孔内连接单通或双通套管。适用于变压器油介质，采用特殊无渗漏结构工艺，其材料为优质环氧树脂，具有良好的机械和电气性能。
10kV-24kV 200A Bushing for the US box into the high pressure to introduce or lead wire casing joints, the product with a pressure plate to be fixed to the box, the seat hole to connect single or double through the casing. applicable to transformer oil medium, the use of special non-leakage structure of the process, the material for high-quality epoxy resin, with good mechanical and electrical properties。
10kV-24kV 200A 套管座用于美式箱变高压引入或引出线套管接头，产品用压板将其固定于箱体上，座孔内连接单通或双通套管。适用于变压器油介质，采用特殊无渗漏结构工艺，其材料为优质环氧树脂，具有良好的机械和电气性能。
10kV-24kV 200A Bushing for the US box into the high pressure to introduce or lead wire casing joints, the product with a pressure plate to be fixed to the box, the seat hole to connect single or double through the casing. applicable to transformer oil medium, the use of special non-leakage structure of the process, the material for high-quality epoxy resin, with good mechanical and electrical properties。
