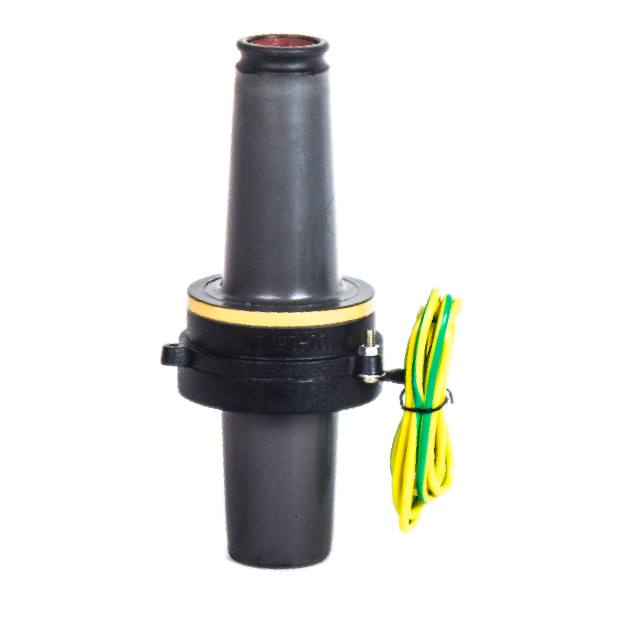

10kV 200A 单通套管
200A Bushing insert
-
DT-15/200
产品应用：
10kV 200A 单通套管与套管座配合提供了与一体式套管做相同的功能，与肘型电缆接头配合是可插拔连接系统中最基本的组成部分，主要用于美式箱变、户外开关柜的高压电气连接。单通套管接头与套管座配合使得现场安装与更换更为灵活。单通套管的内六角使安装更为方便，配合使用安装工具，可以将套管紧密安装至套管座而避免任何潜在的损坏。产品采用高品质的绝缘橡胶，单通套管内部先进的设计确保在与肘型接头断开时能正常灭弧。
10kV 200A Bushing insert work with bushing well,can provide the same function as integrated bushing connector.If work with elbow cable connector ,it is the the most basic part in pluggable connection system. mainly used for high voltage electrical connection of american pad-mound transformer, outdoor switch cabinet, etc.bushing insert matched with bushing well ,can make installation and replacement is more flexible.the hex socket of bushing insert makes the installation more convenient,use with the installation tools,can install the bushing close to the bushing well and avoid any potential damage.adopt high quality insulation rubber, advanced design can make sure normal arcing。
产品结构：
外半导电层：预制的高品质导电橡胶与电缆屏蔽层搭接使屏蔽连续，并确保外半导电层处于接地状态
绝缘层：特有的配方和混合技术确保预制绝缘橡胶的优质品质
接地眼：预注到外屏蔽中用于接地线的连接
导电体：铜质部件把电流从铜质接头连接到设备上
带螺纹底座：3/8"-16螺纹可以保证套管座安全连接到单通套管上
消弧室：有效消除电缆接头插拔操作时产生的电弧，保证设备安全运行
Outer semi-conductive layer: Prefabricated high-quality conductive rubber overlap with the cable screen layer,make thescreen continuous, and make sure the outer semi-conductive layer in the earthing status.
Insulation layer: unique formula and hybrid technology ensure the high quality of prefabrication insulating rubber.
Earthing eye: pre-injection to the outer screen used for earthing wire connection
Conductor: copper parts put the current connect from copper connector to the equiment.
Threaded base: 3/8 "-16 thread can ensure bushing well securely attached to bushing insert.
Arcing chamber: effectively eliminate the electric arc, ensure the safe operation of the equipment.
