10kV 200A 肘型电缆接头
200A Elbow connector
-
ZT-15/200
产品应用：

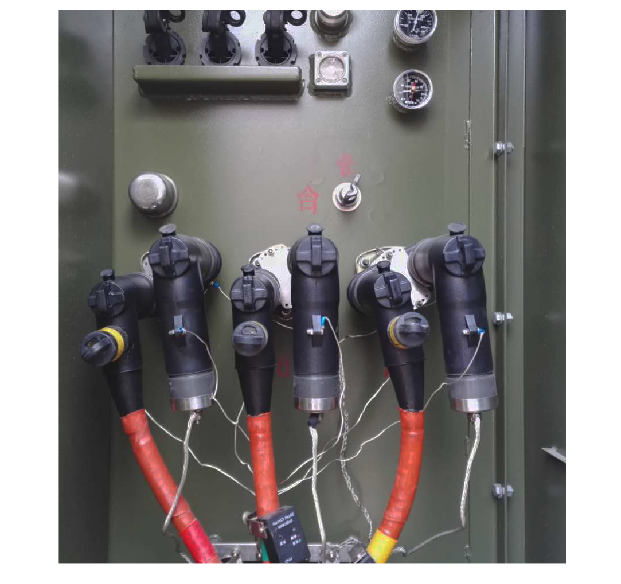

10kV 200A 肘型电缆接头为全绝缘、全密封可带电触摸的插入式终端电缆接头，广泛应用于户外美式箱变，开关柜，电缆分支箱，地埋式变压器及其它电气设备的连接。安装在200A母排上及美式箱变的单通（或双通）套管接头和T-II型电缆头后部负荷转换接头200A的出线端。测试点可安装带电显示器或故障指示器，以便查询设备带电状态和故障状态。产品采用高品质的绝缘橡胶，导电杆连接头装有灭弧材料，因此可在带电状态下操作，但不能切断短路电流；可作为负荷开关开断200A的电流。
10kV 200A Elbow connector insulation, seal can be charged for the whole touch the plug-in terminal cable joint, widely used in outdoor american box, switch cabinet, cable branch box, buried transformer and other electrical equipment. Installed on 200A bus and american box change single pass (or double pass) casing joints and T - type II conversion connector cable head at the back of the load the outlet end of the 200A. test points can be installed charged monitor or fault indicator, in order to track the status of equipment state and fault. the insulation of the product usea the high quality rubber, conductive rod connecting head is equipped with arcing materials, therefore, can be charged in the state of operation but not to cut off the short circuit current; can be used as a load switch off the current of 200A。
10kV 200A 肘型电缆接头为全绝缘、全密封可带电触摸的插入式终端电缆接头，广泛应用于户外美式箱变，开关柜，电缆分支箱，地埋式变压器及其它电气设备的连接。安装在200A母排上及美式箱变的单通（或双通）套管接头和T-II型电缆头后部负荷转换接头200A的出线端。测试点可安装带电显示器或故障指示器，以便查询设备带电状态和故障状态。产品采用高品质的绝缘橡胶，导电杆连接头装有灭弧材料，因此可在带电状态下操作，但不能切断短路电流；可作为负荷开关开断200A的电流。
10kV 200A Elbow connector insulation, seal can be charged for the whole touch the plug-in terminal cable joint, widely used in outdoor american box, switch cabinet, cable branch box, buried transformer and other electrical equipment. Installed on 200A bus and american box change single pass (or double pass) casing joints and T - type II conversion connector cable head at the back of the load the outlet end of the 200A. test points can be installed charged monitor or fault indicator, in order to track the status of equipment state and fault. the insulation of the product usea the high quality rubber, conductive rod connecting head is equipped with arcing materials, therefore, can be charged in the state of operation but not to cut off the short circuit current; can be used as a load switch off the current of 200A。
