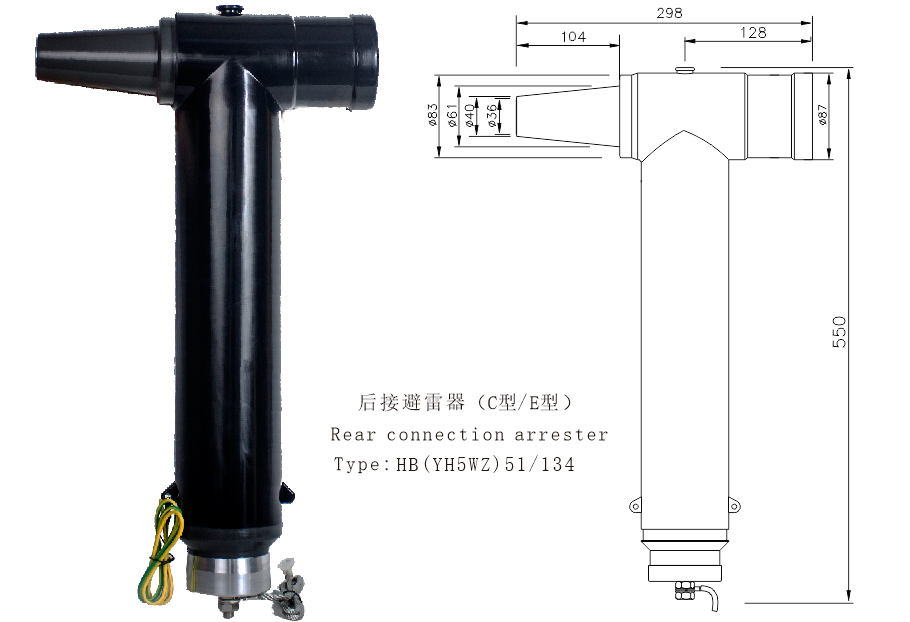

35kV-630A欧式后接避雷器
35kV 630ARear connection arrester
-
HB(YH5WZ)-51/134
产品应用：
35kV后接避雷器安装于环网柜、充气柜、分接箱及高压开关柜的前、后接头后面。能为电气系统提供可靠的过电压保护。屏蔽型的避雷器的外半导电层确保了安装和维护人员的人身安全及设备的安全运行，防水，防潮的特有性能确保了产品在恶劣的环境下安全可靠运行。
35kV Rear connection arrester installed in the ring network cabinet, inflatable cabinet, distribution box and high voltage switchgear before and after the rear. can provide reliable overvoltage protection for electrical systems. the outer semiconducting layer of the shielded arrester ensures the safety of the installation and maintenance personnel and the safe operation of the equipment. the unique performance of the waterproof and moisture-proof ensures the safe and reliable operation of the product in harsh environments。
产品结构：
绝缘层：特有的配方和混合技术确保预制绝缘橡胶的优质品质
外半导电层：预制的高品质导电橡胶与电缆屏蔽层搭接使屏蔽连续，并确保外半导电层处于接地状态
避雷器芯子:由经过特殊工艺处理的氧化锌避雷器阀片组成
接地线：避雷器下端自带的接地线，用于将过电压有效接引到接地位置
Insulation: special formula and mixing technology to ensure the high quality of the prefabricated insulation rubber
The outer layer of prefabricated shield high quality conductive rubber and the shielding layer of cable joint continuous,
and ensure the medical semi conductive layer in the ground state
The core of lightning arrester: the valve block of zinc oxide arrester processed by special technology
Grounding wire: the lightning arrester at the lower end of the grounding wire, used to connect the overvoltage to the
ground
产品包装：
后接避雷器本体
连接杆,双头螺栓
铜接地线、硅脂、清洁纸
安装标尺卡、安装指导说明书
产品出厂资料
Rear connection arrester body
Connecting rod
Copper grounding wire, silicon grease, cleaning paper
Install scale card, installation instruction manual
Product information
