10kV-24kV 高压电缆分接箱
10kV-24kV Cable distribution box
-
DFW-15/630 DFW-24/630
产品应用：
电缆分接箱以其优良的性能全绝缘、全密封、防尘、防潮、防洪、耐腐蚀、环境适应性强及规范化的设计、优美的外观、广泛应用于电缆配网系统中的埋地电缆化工程设备，在各大工业园区、居民小区、城市人口密集区、商业中心等其它用电设施场所得到普遍认同。

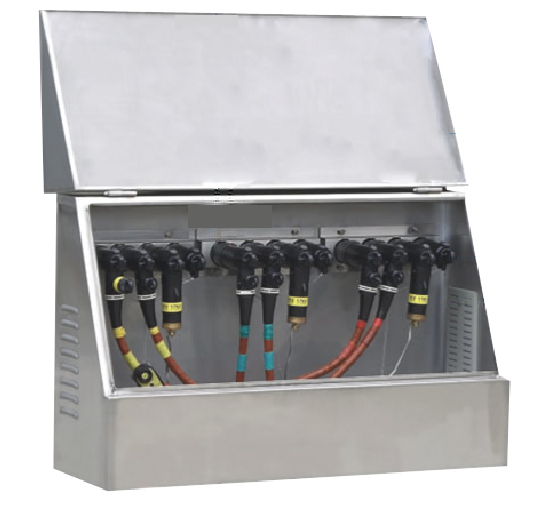

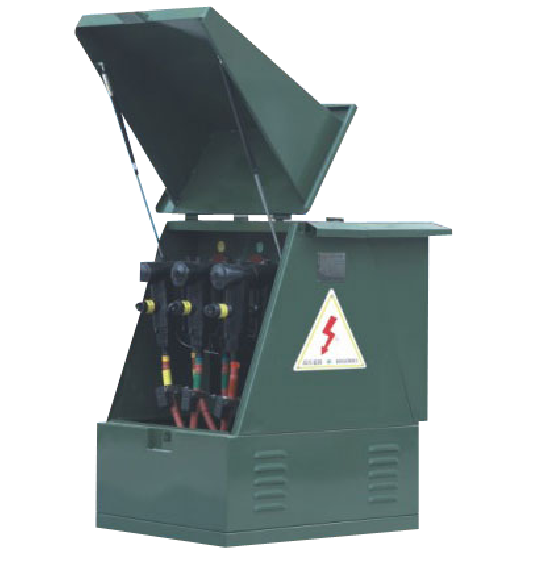

电缆分接箱分为：欧式电缆分接箱及美式电缆分接箱。欧式电缆分接箱结构为双侧开门,方便安装施工及明显区分进出线侧。主回路及分支回路电流均采用630A欧式螺栓式电缆连接头。美式电缆分接箱结构以单项开门、横向母排为主要特点，具有宽度小、组合灵和等显著特点。额定电流可以划分为600A主回路及200A支回路。600A主回路采用600A美式螺栓式T型电缆连接头，200A支回路采用可带电可插拔式200A肘型接头连接。
Cable tapping box is widely used in cable distribution system for its excellent performance, full insulation, full sealing, dustproof, moisture proof, floodproof, corrosion resistant, environmental adaptability and standardized design, beautiful appearance. Chemical engineering equipment has been widely recognized in other industrial parks, residential quarters, urban densely populated areas, commercial centers and other places where electricity is used.
The cable distribution box is divided into: European cable distribution box and American cable distribution box. The European cable distribution box structure is double-sided to open the door, which is convenient for installation and construction and clearly distinguishes the entry and exit line side. The main circuit and branch circuit currents are all 630A European bolt type cable connectors. The American cable distribution box structure has the main features of single door opening and horizontal busbar, and has the characteristics of small width, combined spirit and so on. The rated current can be divided into 600A main circuit and 200A branch circuit. 600A main circuit adopts 600A American bolt type T-type cable connector, and 200A branch circuit adopts chargeable pluggable 200A elbow joint connection。
电缆分接箱以其优良的性能全绝缘、全密封、防尘、防潮、防洪、耐腐蚀、环境适应性强及规范化的设计、优美的外观、广泛应用于电缆配网系统中的埋地电缆化工程设备，在各大工业园区、居民小区、城市人口密集区、商业中心等其它用电设施场所得到普遍认同。
电缆分接箱分为：欧式电缆分接箱及美式电缆分接箱。欧式电缆分接箱结构为双侧开门,方便安装施工及明显区分进出线侧。主回路及分支回路电流均采用630A欧式螺栓式电缆连接头。美式电缆分接箱结构以单项开门、横向母排为主要特点，具有宽度小、组合灵和等显著特点。额定电流可以划分为600A主回路及200A支回路。600A主回路采用600A美式螺栓式T型电缆连接头，200A支回路采用可带电可插拔式200A肘型接头连接。
Cable tapping box is widely used in cable distribution system for its excellent performance, full insulation, full sealing, dustproof, moisture proof, floodproof, corrosion resistant, environmental adaptability and standardized design, beautiful appearance. Chemical engineering equipment has been widely recognized in other industrial parks, residential quarters, urban densely populated areas, commercial centers and other places where electricity is used.
The cable distribution box is divided into: European cable distribution box and American cable distribution box. The European cable distribution box structure is double-sided to open the door, which is convenient for installation and construction and clearly distinguishes the entry and exit line side. The main circuit and branch circuit currents are all 630A European bolt type cable connectors. The American cable distribution box structure has the main features of single door opening and horizontal busbar, and has the characteristics of small width, combined spirit and so on. The rated current can be divided into 600A main circuit and 200A branch circuit. 600A main circuit adopts 600A American bolt type T-type cable connector, and 200A branch circuit adopts chargeable pluggable 200A elbow joint connection。
