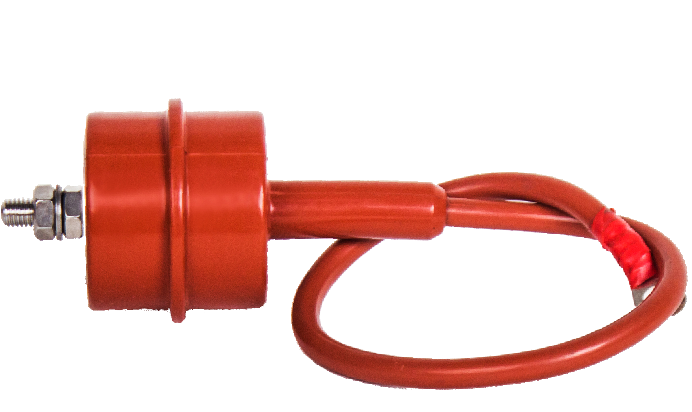

一体式电缆护层保护器
Cable sheath protector
-

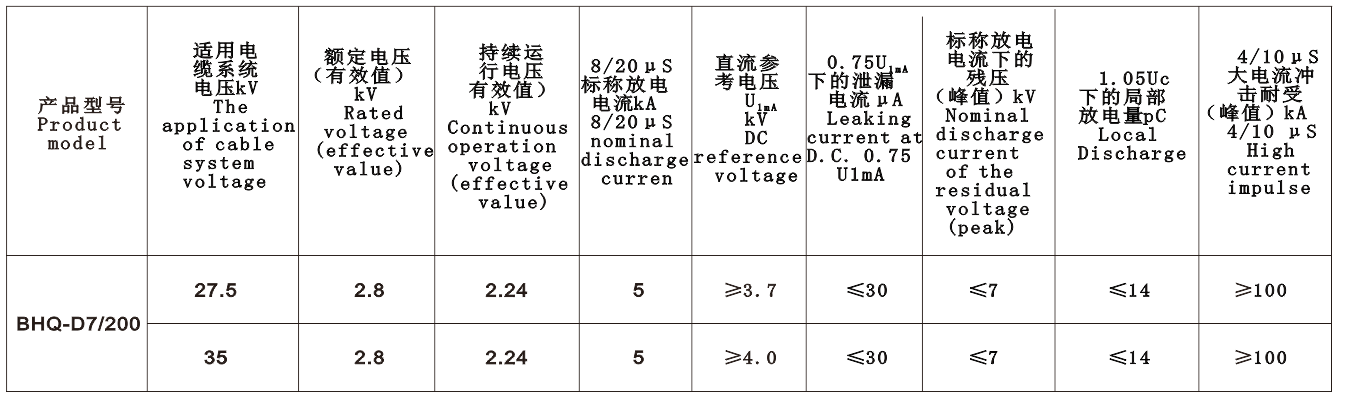

BHQ-D7/200-27.5 BHQ-D7/200-35
产品应用：

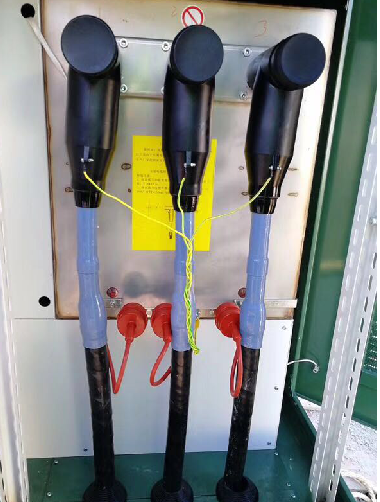

一体式电缆护层保护器使用于27.5-35kV单芯电力电缆的护套过电压保护。采用一体化设计,它将过电压保护器和高压引线电缆整体密封在优质绝缘橡胶材料中,结构紧凑、体积小、安装方便，该产品符合GB 11032-2000和IEC 60099-4:1991标准。可以直接安装于电缆分接箱、环网柜、开闭所或箱式变电站中的电缆终端处。它的高压引线电缆与电力电缆金属护套连接，接地螺栓固定在接地铜牌上。
Cable sheath protector used in 27.5-35kV single-core power cable sheath over-voltage protection. with the integrated design, it will over-voltage protection and high-voltage lead cable as a whole sealed in high-quality insulating rubber material, compact structure, small size, easy installation, the product complies with GB 11032-2000 and IEC 60099-4: 1991 standards. can be directly installed in the cable distribution box, ring network cabinet, open or close the box or substation in the cable terminal. its high-voltage lead cable is connected to the power cable metal sheath, and the grounding terminal is fixed on the grounded bronze。
一体式电缆护层保护器使用于27.5-35kV单芯电力电缆的护套过电压保护。采用一体化设计,它将过电压保护器和高压引线电缆整体密封在优质绝缘橡胶材料中,结构紧凑、体积小、安装方便，该产品符合GB 11032-2000和IEC 60099-4:1991标准。可以直接安装于电缆分接箱、环网柜、开闭所或箱式变电站中的电缆终端处。它的高压引线电缆与电力电缆金属护套连接，接地螺栓固定在接地铜牌上。
Cable sheath protector used in 27.5-35kV single-core power cable sheath over-voltage protection. with the integrated design, it will over-voltage protection and high-voltage lead cable as a whole sealed in high-quality insulating rubber material, compact structure, small size, easy installation, the product complies with GB 11032-2000 and IEC 60099-4: 1991 standards. can be directly installed in the cable distribution box, ring network cabinet, open or close the box or substation in the cable terminal. its high-voltage lead cable is connected to the power cable metal sheath, and the grounding terminal is fixed on the grounded bronze。
