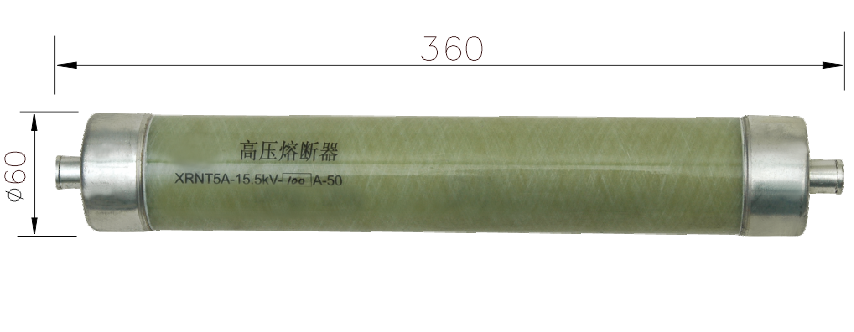

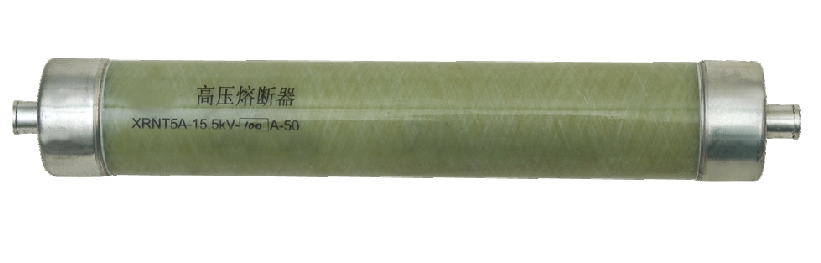

后备保护熔断器
Current-Limiting backup fuse
-
XRNT-( )A
产品应用：
后备保护熔断器是美式箱变过流保护的主要元件，与双敏熔丝串联使用，构成“双熔断器保护”方案。它是油浸式限流型熔断器，用来保护变压器内部故障（线圈短路保护），通常不动作，后备保护熔断器装置最大开断电流为50kA。
Current-limiting backup fuse the box substation over-current protection of the main components, and the use of dual-sensitive fuse in series to form a "double fuse protection" program. It is an oil-immersed current limiting fuse that protects the transformer from internal faults (coil short-circuit protection), normally does not operate, and the backup protection fuse device has a maximum breaking current of 50kA。
后备保护熔断器是美式箱变过流保护的主要元件，与双敏熔丝串联使用，构成“双熔断器保护”方案。它是油浸式限流型熔断器，用来保护变压器内部故障（线圈短路保护），通常不动作，后备保护熔断器装置最大开断电流为50kA。
Current-limiting backup fuse the box substation over-current protection of the main components, and the use of dual-sensitive fuse in series to form a "double fuse protection" program. It is an oil-immersed current limiting fuse that protects the transformer from internal faults (coil short-circuit protection), normally does not operate, and the backup protection fuse device has a maximum breaking current of 50kA。
